Graphite boats & carriers
Graphite carrier assemblies
Machined graphite carriers and support assemblies for equipment loading and positioning.
View image ⤢UNITY GLOCAL / GRAPHITE TECHNOLOGY

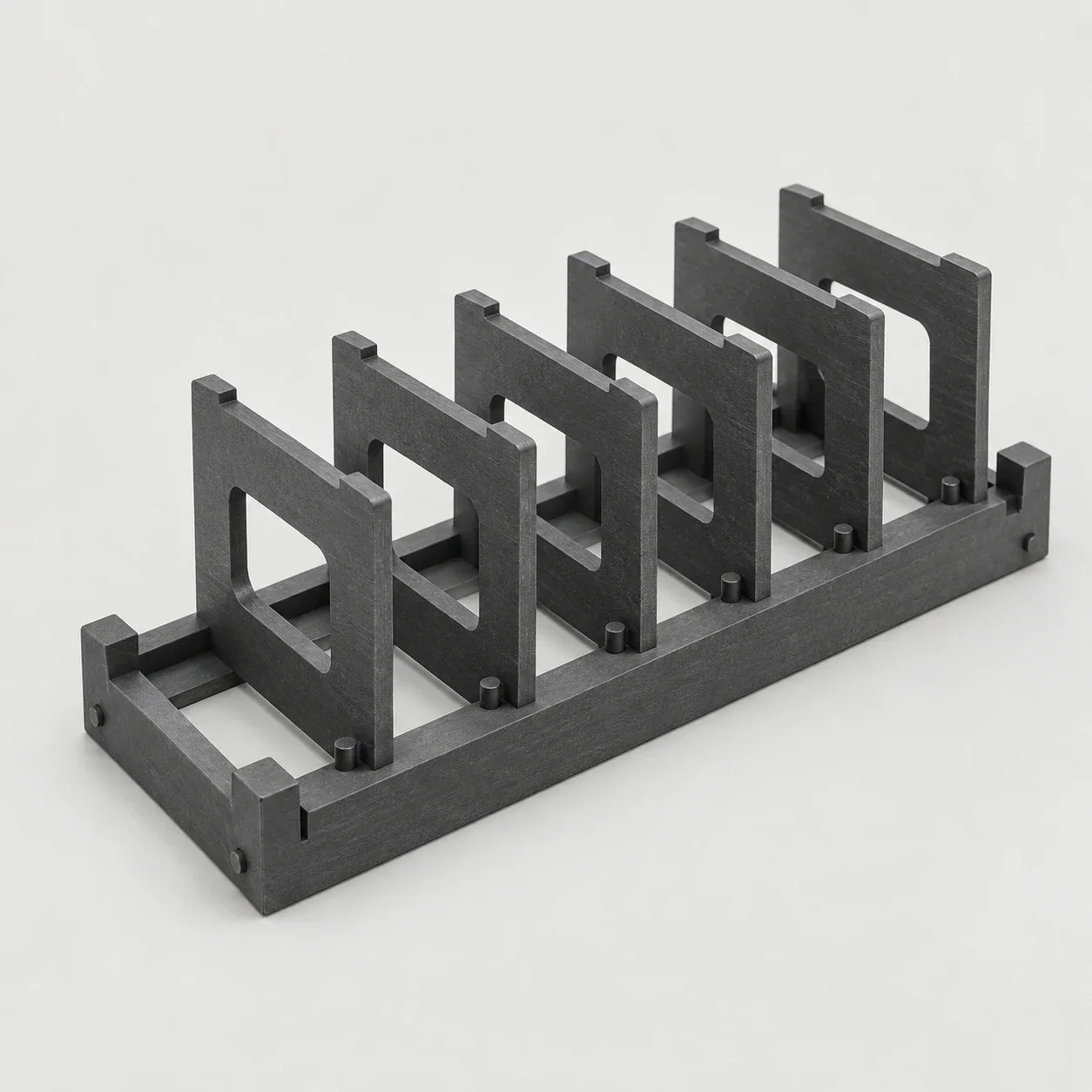

Graphite boats & carriers
Graphite carrier assemblies
Machined graphite carriers and support assemblies for equipment loading and positioning.
RoleCarrier and support structures for custom graphite assemblies.
Supply scopeDrawing-defined parts and replacements
Define the part around its role
Support geometry, locating interfaces and connections are reviewed against the mating assembly.
Order information
Confirm the material grade, critical dimensions, drawing revision, quantity and inspection scope. Product images show references; final geometry and compatibility are agreed for the order.
Specifications
| Geometry & fit | Approved drawing and mating interfaces |
|---|---|
| Material | Grade and required properties to be confirmed |
| Quantity & inspection | Defined in the project quotation |
Customization
- Drawing-defined scope
- Geometry, graphite grade, fit, quantity and inspection requirements.
Frequently asked questions
Can you supply a replacement for our existing equipment?
Send the controlled drawing or an existing part reference and equipment interfaces. Compatibility is confirmed during project review.
What is needed for a quotation?
Drawing revision, material grade or required properties, quantity, inspection scope and delivery destination.
